Description
POWERGRIP YG-3 is a pure power console for connecting and centrally controlling stereo, home audio or home theater components. The rear panel features 12 sockets divided into six groups. Six sockets are specifically designed for power amplifiers.
The console's maximum electrical ratings are 25 A and 5750 W. When powered from a standard outlet, power up to 3680 W and current up to 16 A are available. These parameters are sufficient to connect a large audio and video system with signal sources, processors, amplifiers and other components.
POWERGRIP YG-3 monitors the parameters of the power supply and disconnects consumers when the voltage drops to 190 V or increases to 256 V. The console's power supply is designed for long-term trouble-free operation in the range from 160 to 320 V. Protection against high-voltage pulses is implemented using varistors.
The console supports filtering settings and is equipped with an automatically connected DC filter. The DC measurement range is ±999 mV, and the maximum value of its absorption is 1.8 V. Protection against threats that may come through antenna cables is also provided.

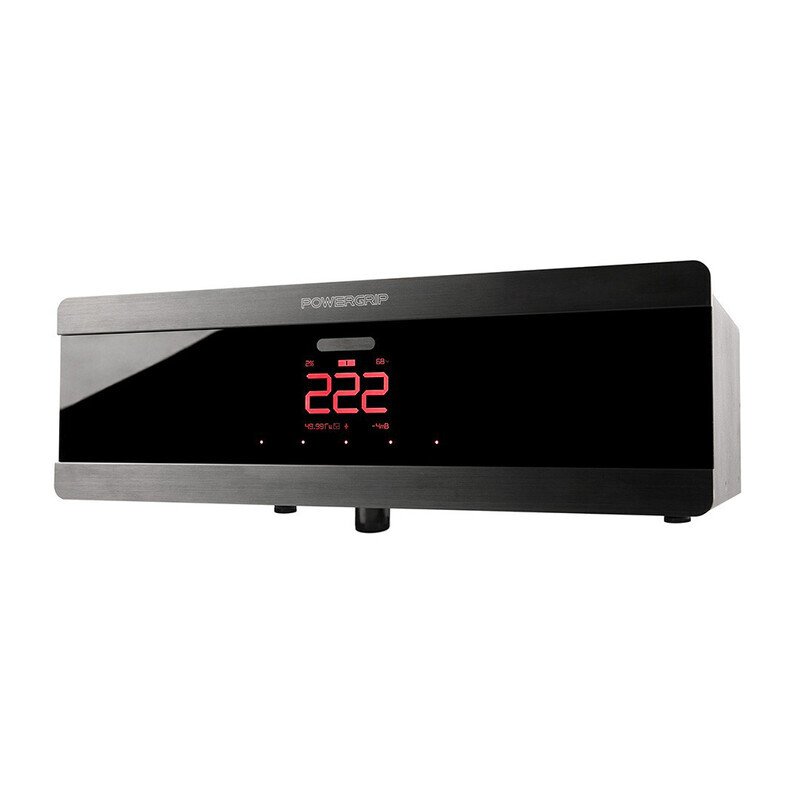

Control is carried out using seven touch buttons and a mechanical full shutdown button. The on-screen menu allows you to adjust the brightness and style of the display, filtering parameters, always-on sockets and delays between groups. The maximum on or off delay is 60 seconds.
The built-in consumption sensor can automatically turn on the system when one of the connected components comes out of standby mode. The light sensor detects the light level in the room and adjusts the display.
For remote control, Wi-Fi control is provided using a mobile application running through the eWeLink service. Trigger control and an RS232 interface allow you to integrate POWERGRIP YG-3 into professional control systems, including RTI, Control4 and Crestron.
